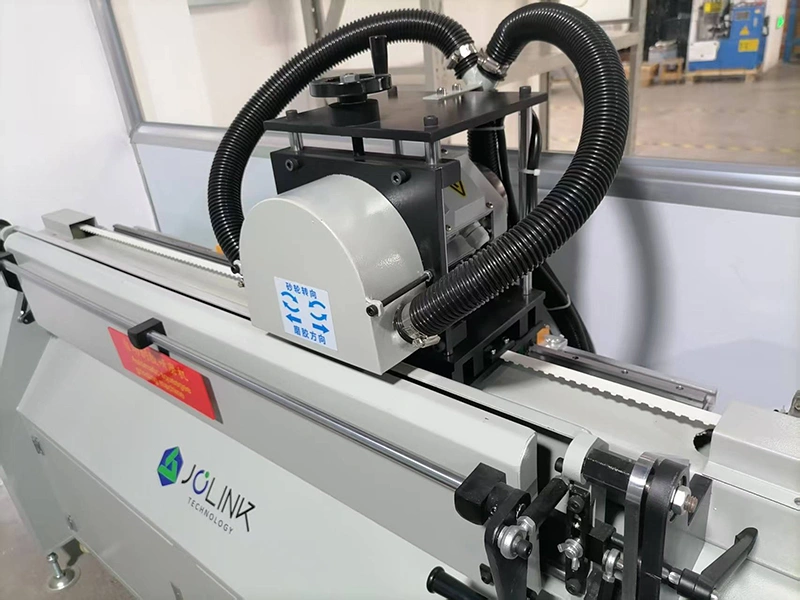

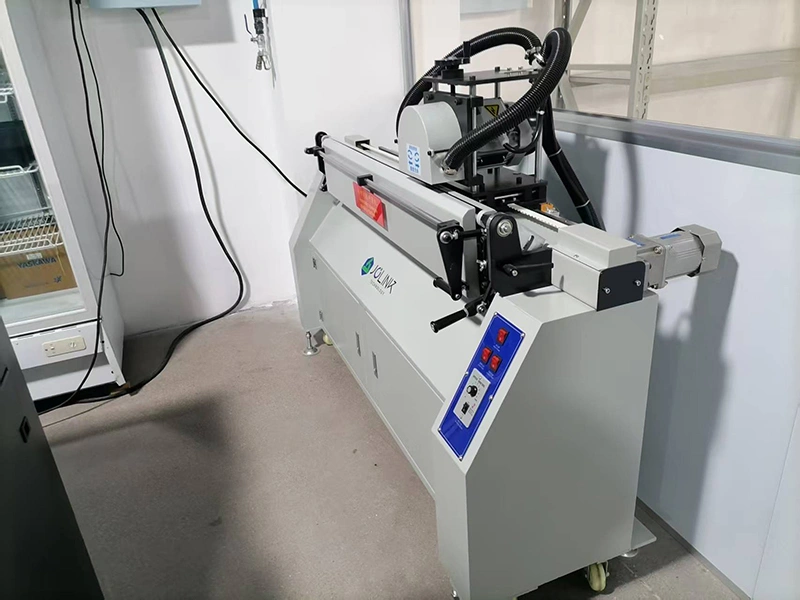

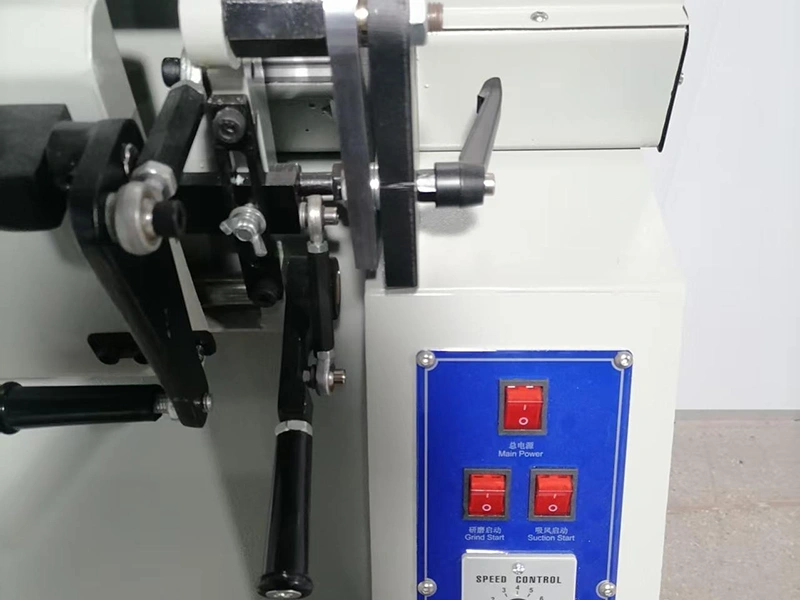

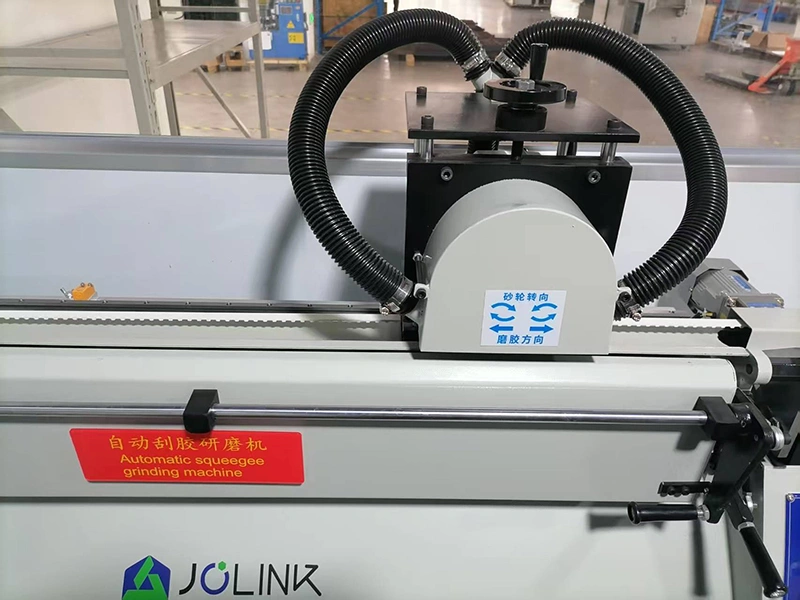

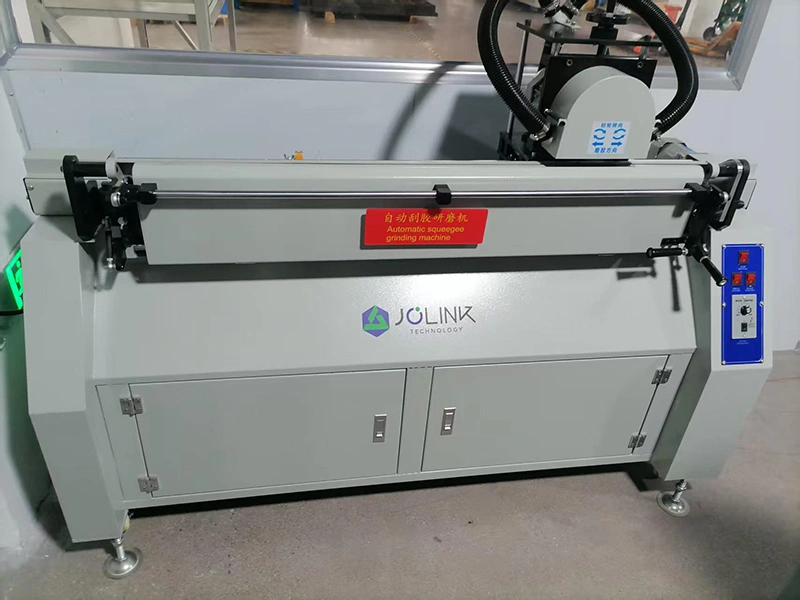

Automatic Squeegee Grinder

Squeegee grinder brings worn, nicked, or uneven squeegees back to a clean working edge through precision grinding. It is used for sharpening squeegee blade on holder in order to obtain flat straight and sharp edges, so to support consistent print quality. It also handles different squeegee specifications, so the grinding can be matched to the requirements of different screen-printing jobs. Regular grinding restores worn or damaged edges to an even working condition and extends the usable life of the squeegee instead of replacing it as soon as the edge becomes worn or damaged.

Technical Specifications
Model ZL0-1000B1 ZL0-1200B1 ZL0-1500B1 ZL0-2000B1
Grinding Length 100-1000mm 100-1200mm 100-1500mm 100-2000mm
Grinding Width 0.1~20mm
Longitudinal Fine Adjustment 0-10mm
Grinding Accuracy ≤0.01mm
Dust Collector 1.2kW
Power Supply AC 380V 50Hz 3P 1.5kW
Net Weight 135kg 155kg 185kg 235kg
Machine Dimensions (L×W×H) L1650×W500×H1280mm L1850×W500×H1280mm L2150×W500×H1280mm L2650×W500×H1280mm
Applications
  • Routine Squeegee Maintenance
    Regular grinding keeps the squeegee edge even and in suitable condition for continuous screen-printing production.
  • Repair and Reuse
    Worn, nicked, or uneven squeegees can be reground for further use, reducing unnecessary replacement and consumable costs.
  • New Squeegee Preparation
    New squeegees can be precisely ground before use to match the requirements of different printing processes.
Backed by 20+ years of engineering expertise, LINGTIE is a direct manufacturer specializing in industrial printing equipment and label finishing equipment, delivering roll-to-roll screen printing lines, letterpress printing presses, and automatic heat transfer presses. Serving global clients across packaging, textiles and apparel, labels, nonwoven products, electronics, plastic products, and paper processing, we offer a complete range of auxiliary equipment such as slitter rewinder, inspection rewinder, roll-to-sheet cutter, and UV curing machine to seamlessly convert raw substrates into precision-printed products. Global procurement partners trust LINGTIE because we manage the complete production process in-house, from precision machining to final assembly, delivering turnkey printing solutions with reliable performance, high accuracy, and long-term production stability for customers worldwide.
