Corona Treater
Surface Treatment

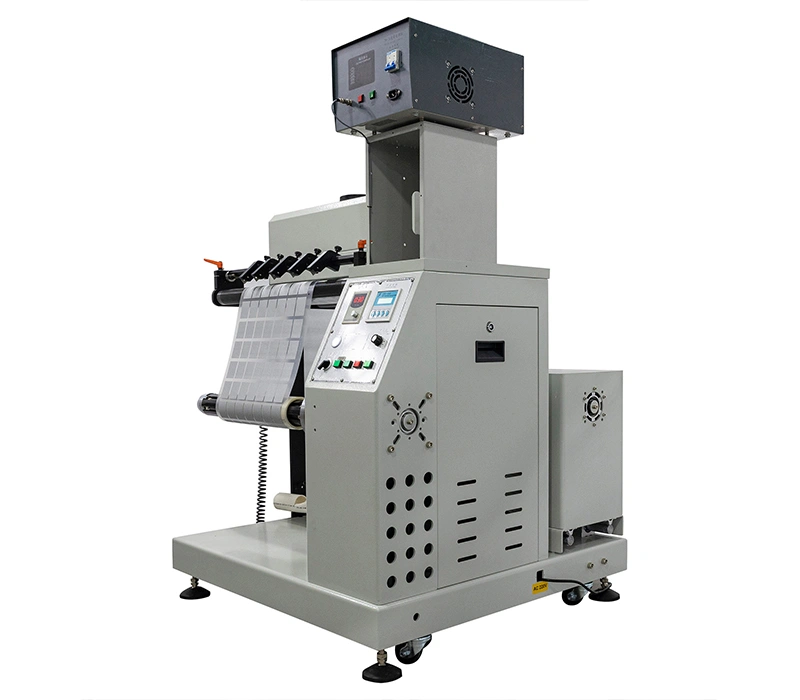

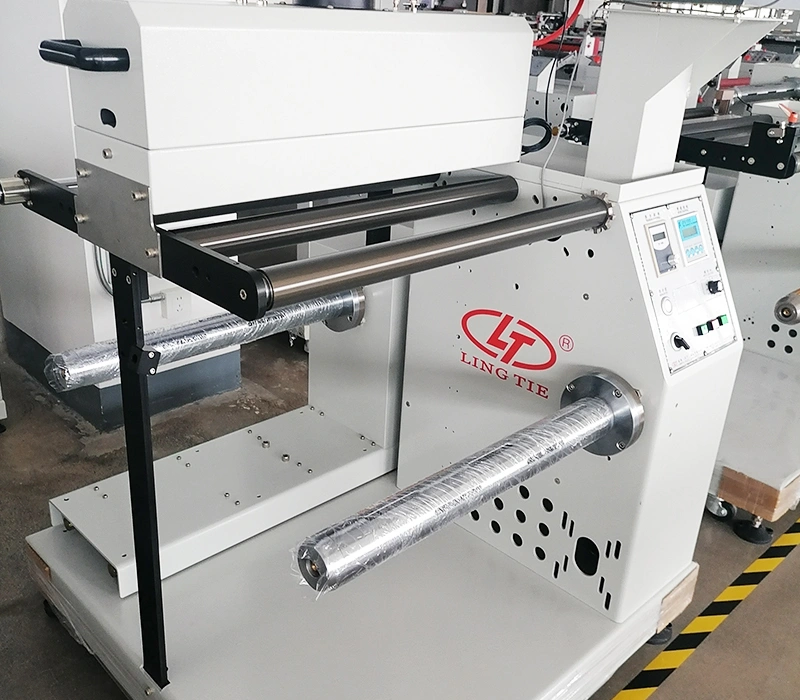

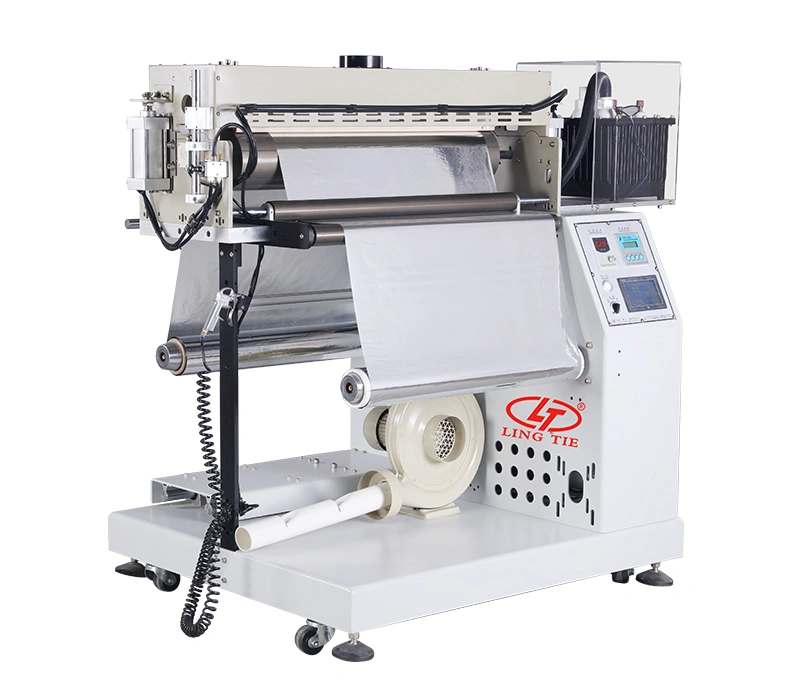

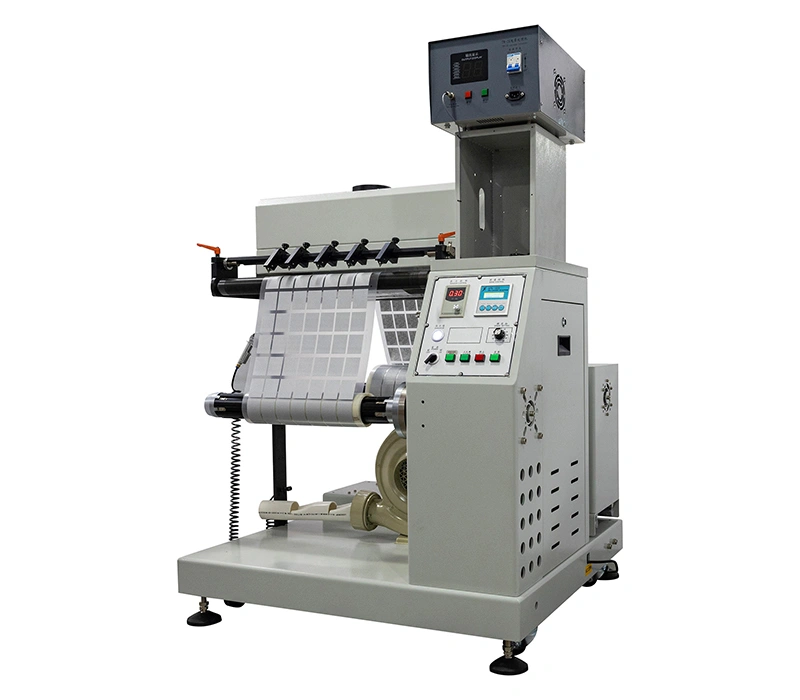

Corona Treater

Corona treater uses a high-efficiency discharge treatment method to increase the surface energy of printing substrates and improve ink adhesion. Treatment intensity, electrode clearance, and material speed can all be adjusted to suit different substrates and production conditions. It also integrates web guiding and rewinding functions for convenient roll-to-roll processing.

Samples

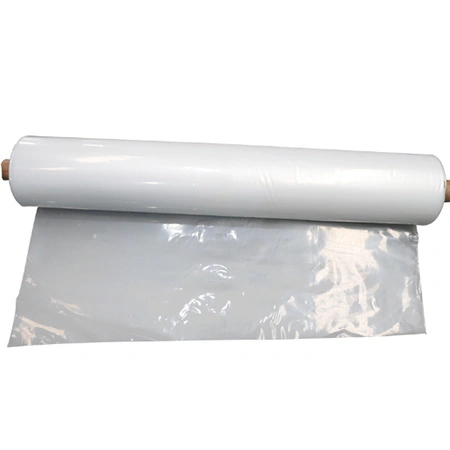

  • PE film
    PE film

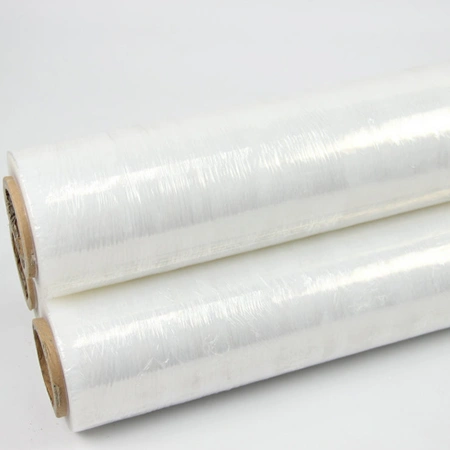

  • PET film
    PET film

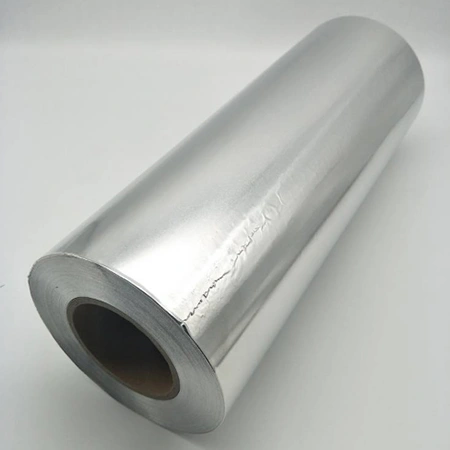

  • Industrial aluminum foil
    Industrial aluminum foil

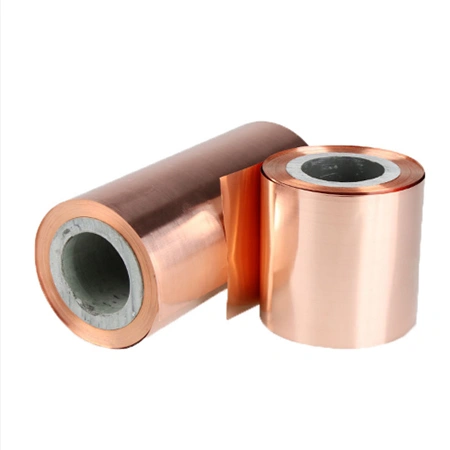

  • Copper foil
    Copper foil
Technical Specifications
Input Voltage AC 220V±20%,50–60Hz
Corona Power 2kW
Output Voltage 15000V
Frequency 12–28kHz
Recommended Corona Treatment Width 200–600mm(double-sided)
Weight 9.5kg
Machine Dimensions (L×W×H) 400×310×220mm
Operating Temperature -30°C-45°C
Advantages
  • Adjustable corona treatment intensity to match different materials and surface treatment requirements.
  • Adjustable electrode gap for greater control over the treatment process.
  • Variable material speed to accommodate different production requirements.
  • Automatic shutdown protection stops the corona discharge when material movement stops, reducing the risk of substrate burn-through.
  • Optional slitting function combines surface treatment and slitting in a single process when required.
  • Integrated web guiding and rewinding keeps the material properly aligned and neatly wound after treatment.
Components

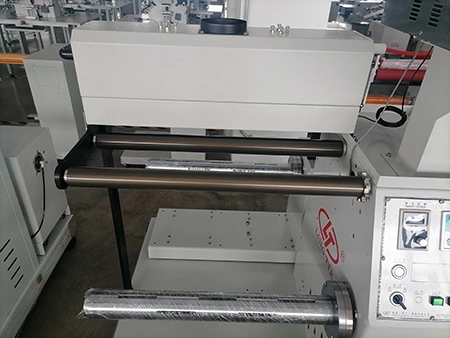

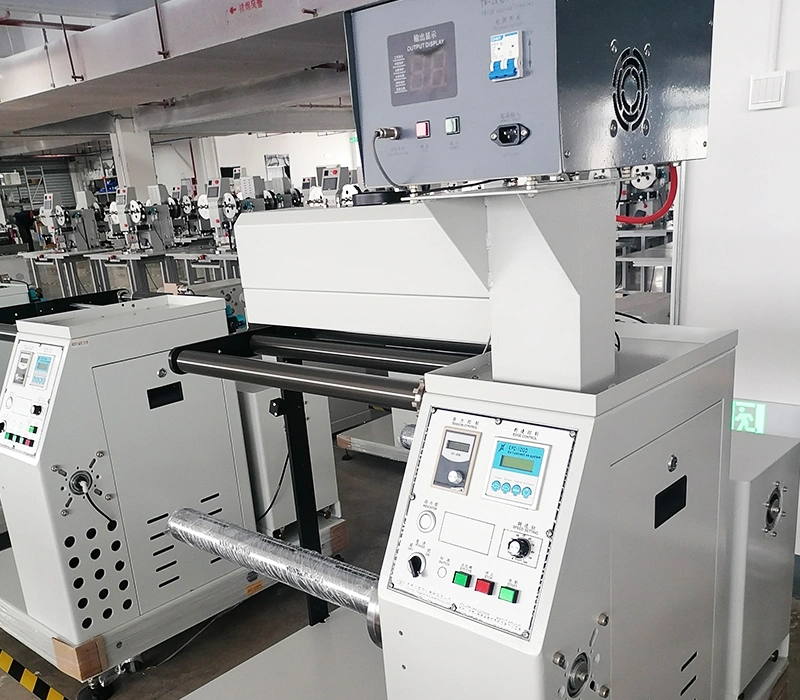

  • Corona treatment system
    Corona treatment system

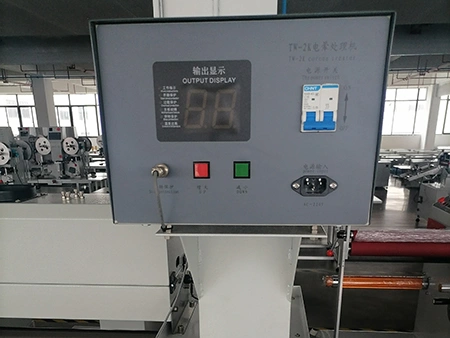

  • Corona treater power supply and control panel
    Corona treater power supply and control panel

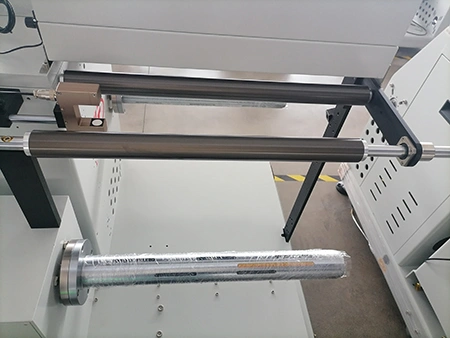

  • Web guide sensor
    Web guide sensor

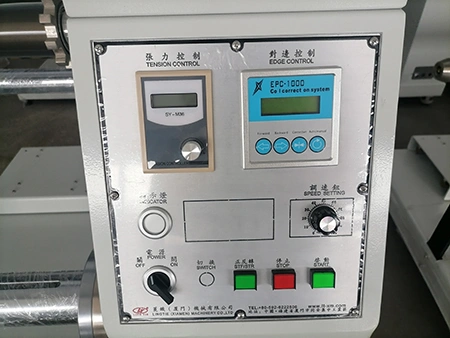

  • Control panel
    Control panel
