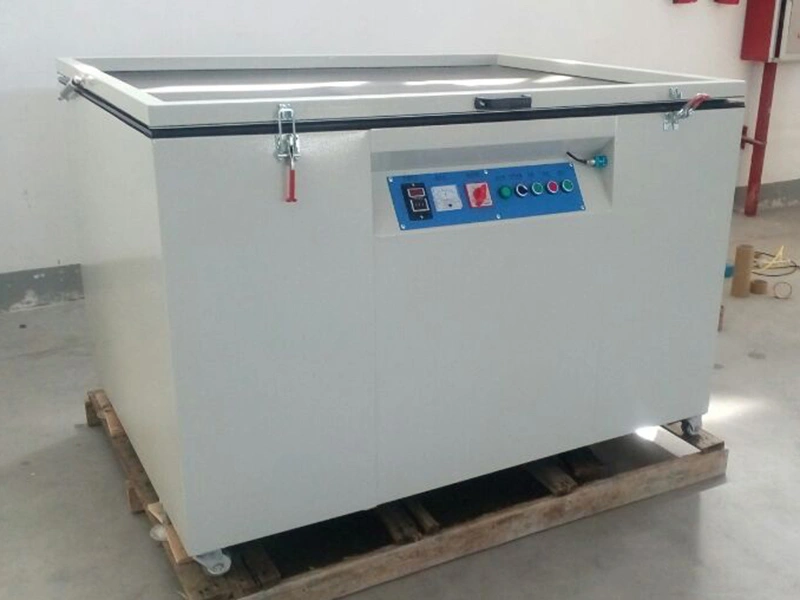

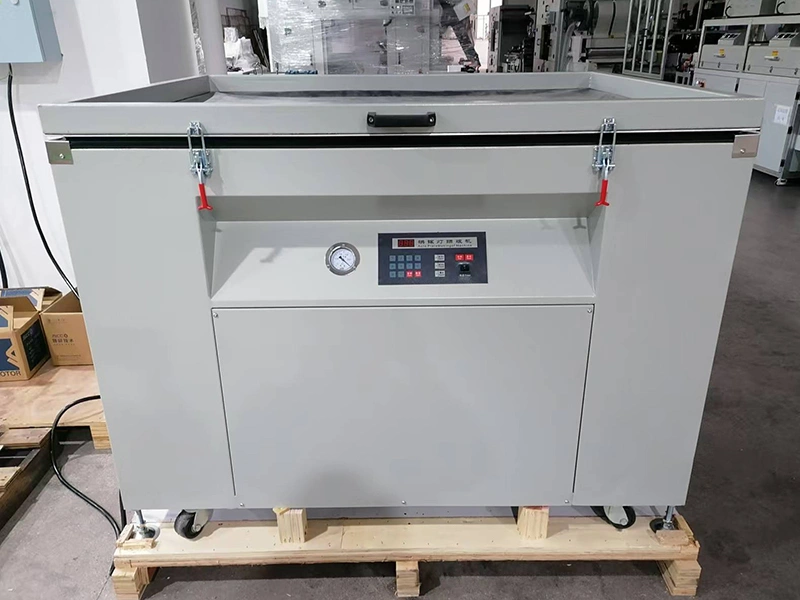

Screen Printing Exposure Unit

Clear, accurate screen imaging is achieved through UV exposure and high-vacuum contact between the film and screen. Screen printing exposure units are essential for producing sharp, consistent stencils and improving efficiency in the screen room. It removes the air between the two surfaces before exposure and keeps the film firmly in place throughout the process. Fine lines, halftone dots, and other small image details can therefore be reproduced clearly on the screen, without the blurred edges or ghosting that caused by poor contact.

Request a Quote
Technical Specifications
Input Voltage V 220
Power kW 2
Exposure Lamp Power kW 2
Exposure Area mm 1200×1500
Vacuum Pump Capacity L 1.5
Net Weight kg 120
Machine Dimensions (L×W×H) mm 1500×1200×1000
Advantages
  • High-vacuum contact
    Strong vacuum pressure removes air gaps between the film and screen. This reduces blurred edges, ghosting, and loss of detail during exposure, with sharper reproduction of lines and halftone dots.
  • Consistent exposure from screen to screen
    Precise light control and adjustable exposure time keep the plate-making process repeatable. This helps screens need to maintain consistent image quality across multiple printing runs for batch production.
Backed by 20+ years of engineering expertise, LINGTIE is a direct manufacturer specializing in industrial printing equipment and label finishing equipment, delivering roll-to-roll screen printing lines, letterpress printing presses, and automatic heat transfer presses. Serving global clients across packaging, textiles and apparel, labels, nonwoven products, electronics, plastic products, and paper processing, we offer a complete range of auxiliary equipment such as slitter rewinder, inspection rewinder, roll-to-sheet cutter, and UV curing machine to seamlessly convert raw substrates into precision-printed products. Global procurement partners trust LINGTIE because we manage the complete production process in-house, from precision machining to final assembly, delivering turnkey printing solutions with reliable performance, high accuracy, and long-term production stability for customers worldwide.

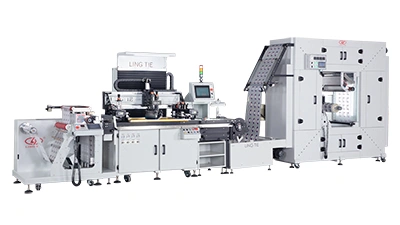

Screen Printing System
