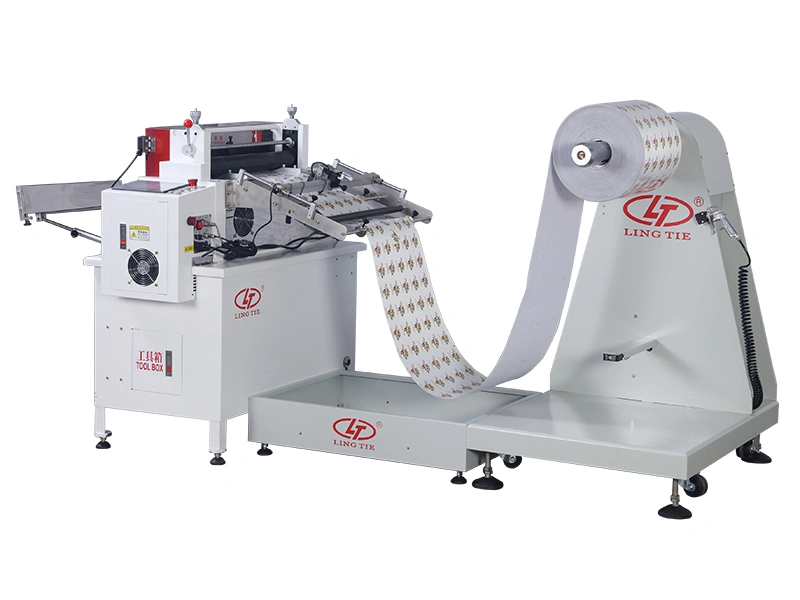

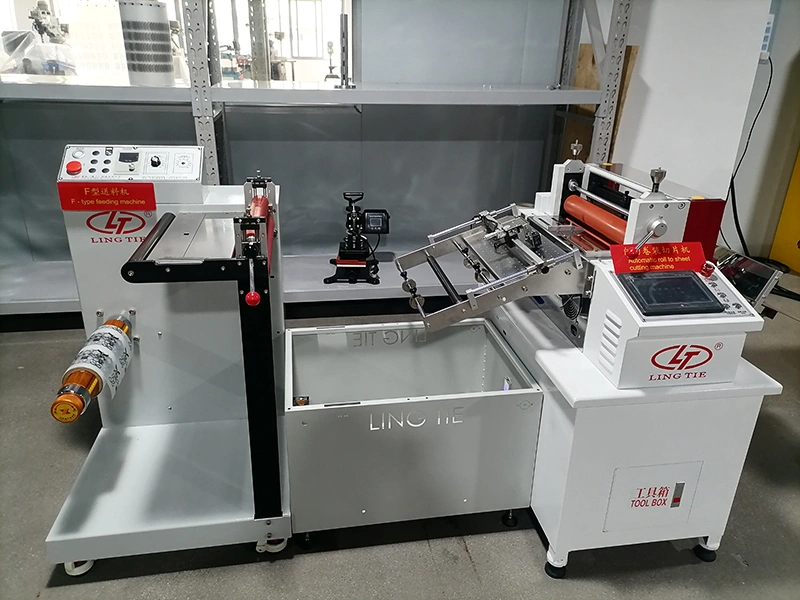

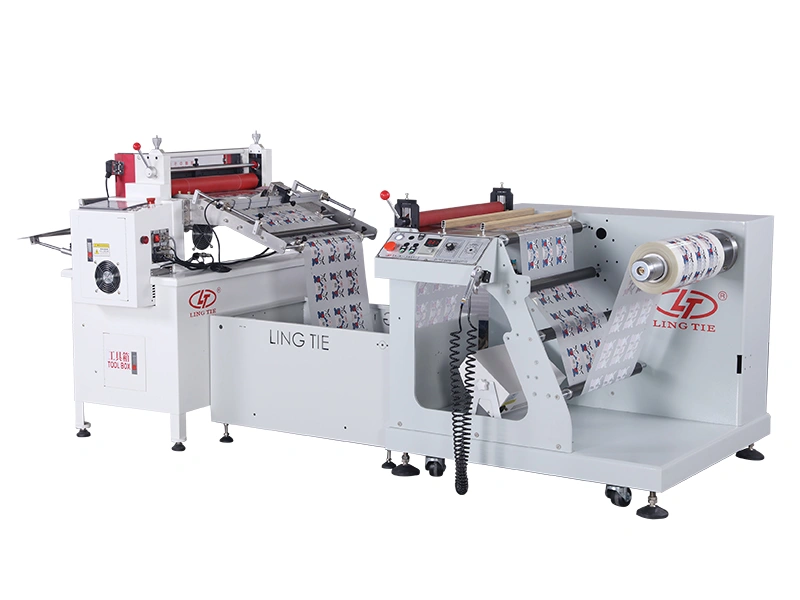

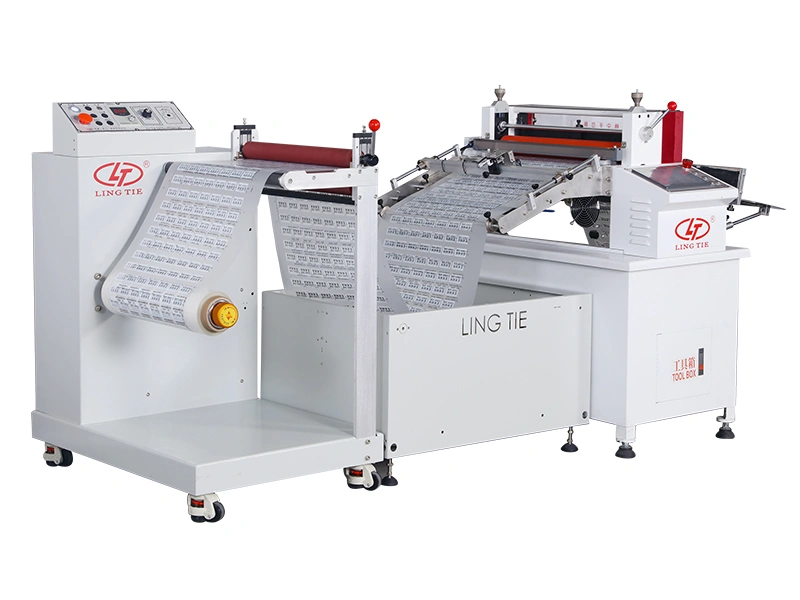

Automatic Sheeting Machine / Roll-to-Sheet Cutter
Automatic sheeting machine converts continuous rolls into accurately sized sheets at precisely controlled lengths and stacks them neatly. A servo-driven system controls the cross-cutting process, with adjustable feeding speed to suit different materials and production requirements. It can process films, paper, metal foils, and a range of flexible composite materials.
Technical Specifications
| Model | |||
| Cutting Width (mm) | 0–350 | 0–500 | 0–600 |
| Cutting Length (mm) | 0.1–9999.9 | 0.1–9999.9 | 0.1–9999.9 |
| Power (kW) | 1.7 | 1.7 | 1.7 |
| Power Supply (V) | 1P / 220V | 1P / 220V | 1P / 220V |
| Net Weight (kg) | 200 | 245 | 280 |
| Machine Dimensions (mm) | L1300×W900×H1100 | L1400×W1030×H1100 | L1400×W1130×H1100 |
Advantages
- Material feeding speed can be adjusted according to the cutting requirement and production pace.

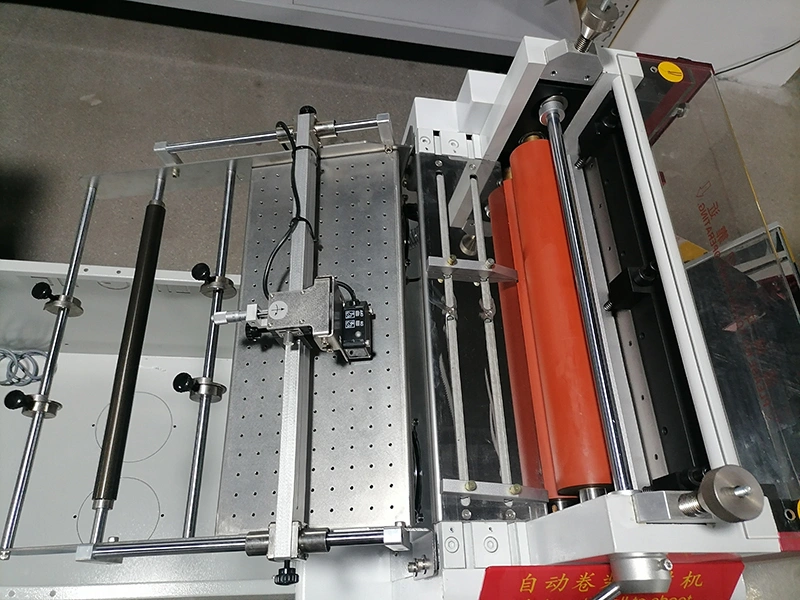

- A vacuum suction plate at the infeed keeps the material steady during cutting and reduces unwanted movement.
- Choose between fixed-length cutting or sensor-mark cutting, which gives the machine the flexibility to handle both standard sheet sizes and pre-printed materials with registration marks.
- Finished sheets maintain consistent dimensions with smooth, burr-free edges.
