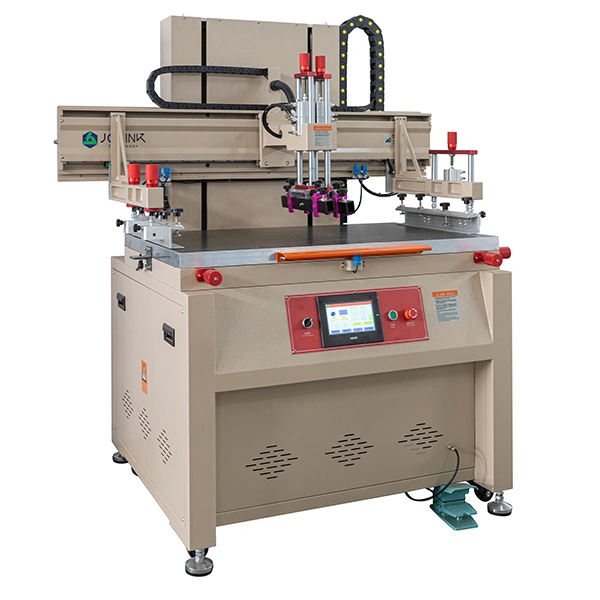

Semi-Automatic Screen Printer

Semi-automatic screen printers are used for printing individual sheets and flat materials in short to medium production runs. To carry out each print cycle, the operator needs to place the substrate on the printing table and remove it after printing, while the screen printer controls the printing stroke and pressure to keep the process consistent from one sheet to the next. Semi-automatic screen presses are easy to operate and are suitable for short to medium production runs that do not require full automation. Safety guards are integrated into the press to protect the operator during use, and the flatbed printing table can accommodate PET, PVC, PC, and other plastic films used in short to medium production runs.

Request a Quote
Samples

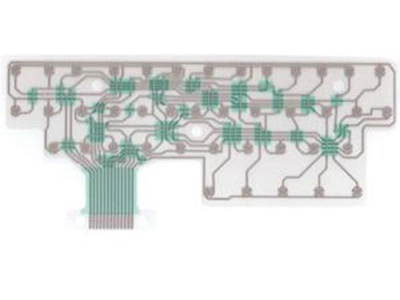

  • Flexible printed circuit (FPC)
    Flexible printed circuit (FPC)

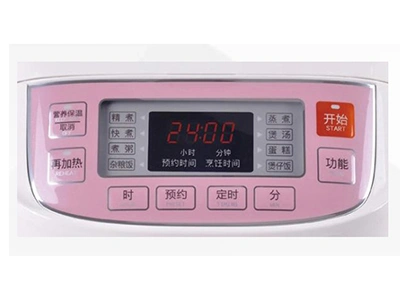

  • Graphic overlay
    Graphic overlay

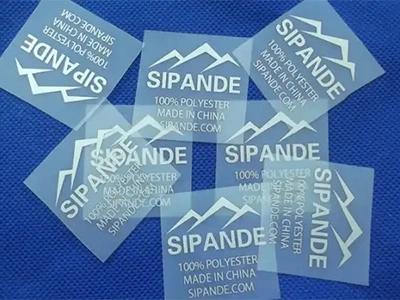

  • Heat transfer labels
    Heat transfer labels
Technical Specifications
Model ZLA-6090A
Printing Table Size (W×L) mm 700×1000
Max. Printing Area (W×L) mm 600×900
Max. Screen Frame Size (W×L) mm 900×1200
Min. Screen Frame Size (W×L) mm 500×700
Substrate Thickness mm 0–20 / 0–50
Printing Speed pcs/h 500–800
Operating Air Pressure MPa 0.3–0.6
Air Consumption L/pcs 13
Power kW 2.5
Rated Voltage V 380
Dimensions (L×W×H) mm 1500×1100×1630
Weight kg 430
Min. Printing Table Height Above Floor mm 900
Components

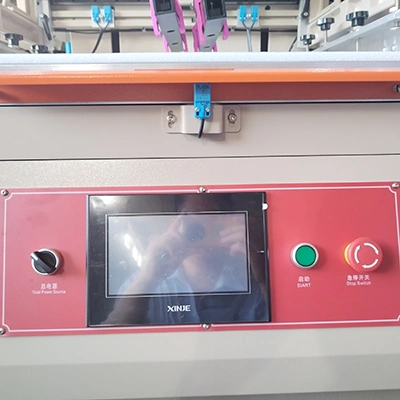

  • Control panel
    Control panel

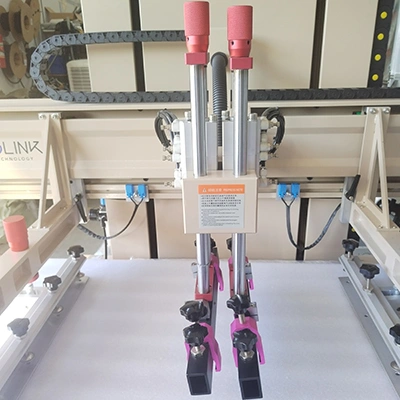

  • Squeegee
    Squeegee

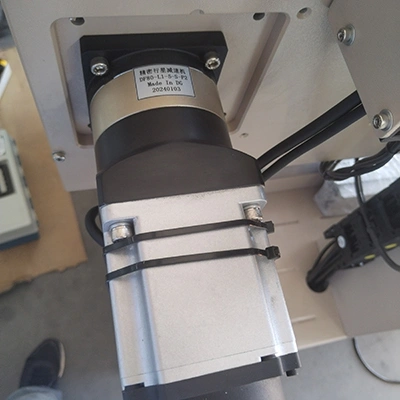

  • Gear motor
    Gear motor

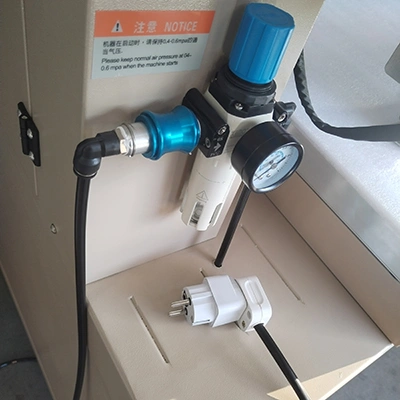

  • Air filter regulator with pressure gauge
    Air filter regulator with pressure gauge
Backed by 20+ years of engineering expertise, LINGTIE is a direct manufacturer specializing in industrial printing equipment and label finishing equipment, delivering roll-to-roll screen printing lines, letterpress printing presses, and automatic heat transfer presses. Serving global clients across packaging, textiles and apparel, labels, nonwoven products, electronics, plastic products, and paper processing, we offer a complete range of auxiliary equipment such as slitter rewinder, inspection rewinder, roll-to-sheet cutter, and UV curing machine to seamlessly convert raw substrates into precision-printed products. Global procurement partners trust LINGTIE because we manage the complete production process in-house, from precision machining to final assembly, delivering turnkey printing solutions with reliable performance, high accuracy, and long-term production stability for customers worldwide.
