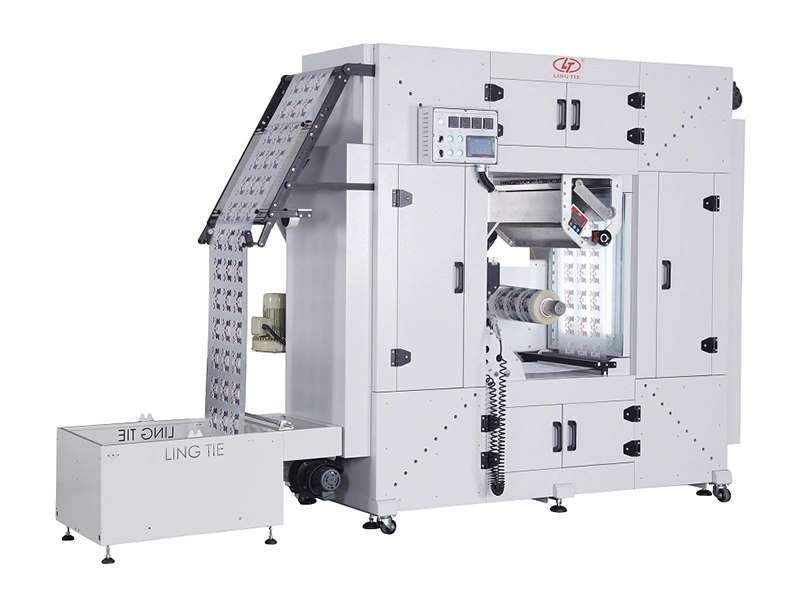

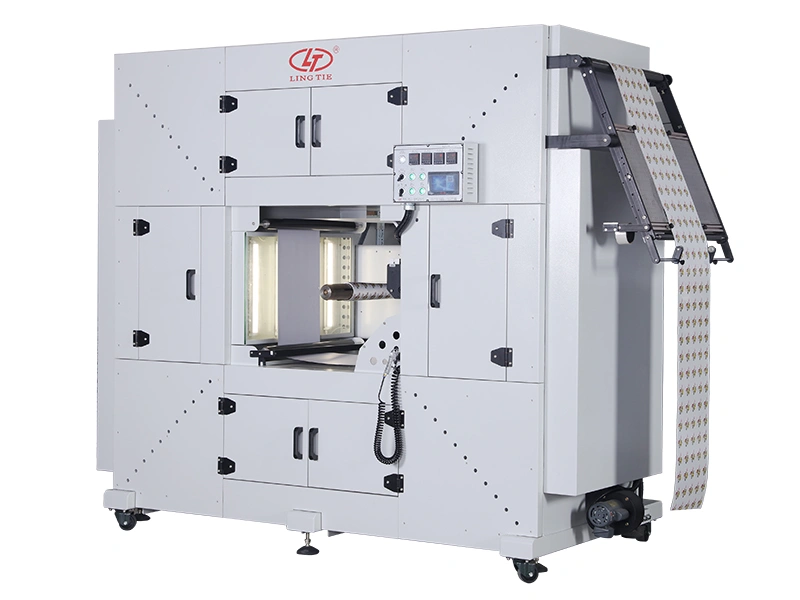

Hot Air Dryer

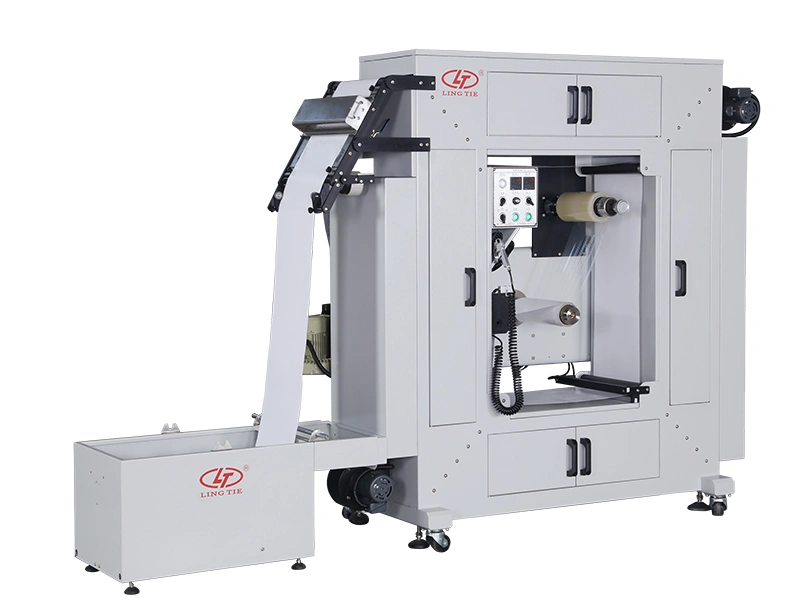

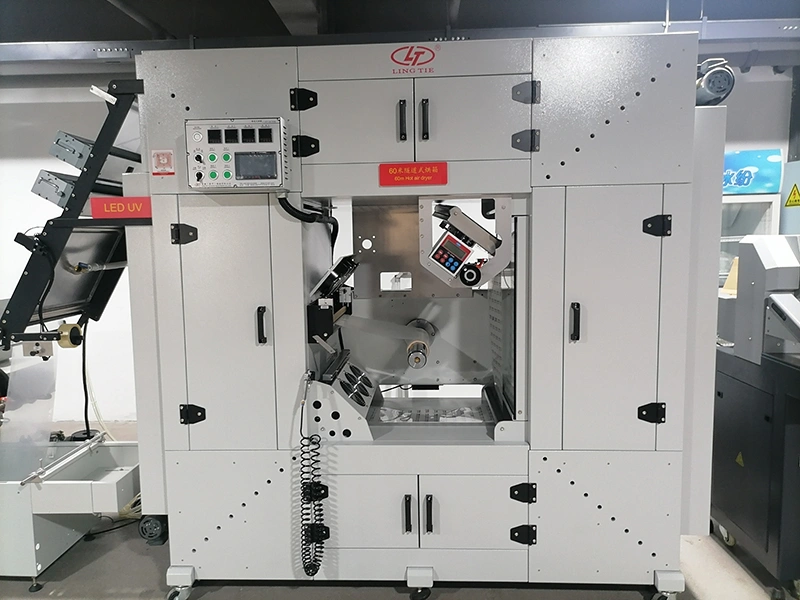

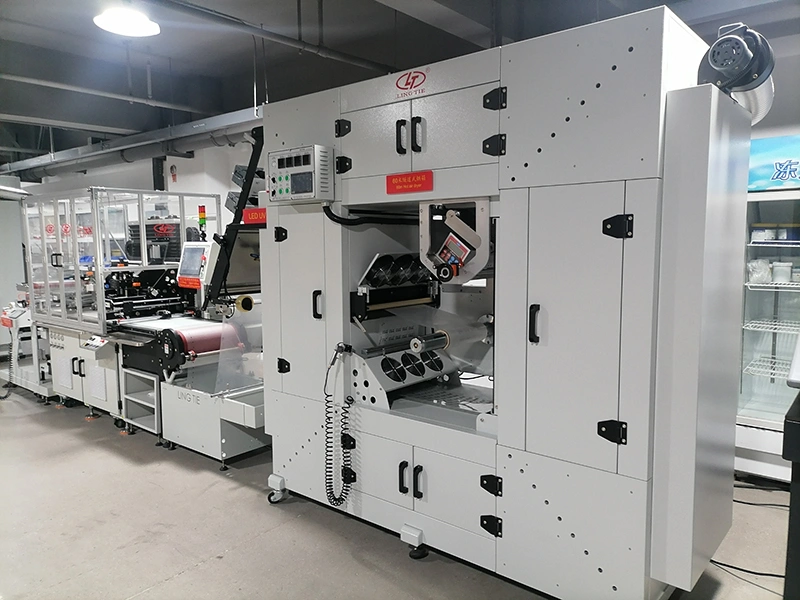

Hot air dryer works with roll-to-roll screen printing lines for continuous drying at a steady material speed. It can handle ink drying after printing as well as the curing of surface coatings on roll materials. The dryer can be paired with roll-to-roll screen printing machines and can also be installed as a standalone replacement for dryers used with roll-to-roll printing machines from other manufacturers.

Request a Quote

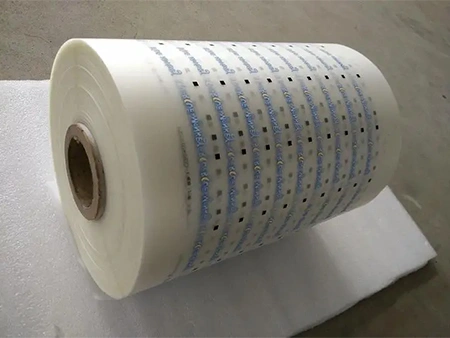

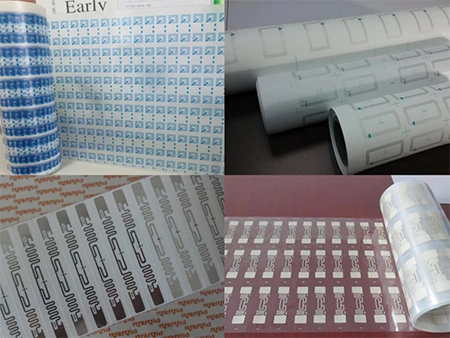

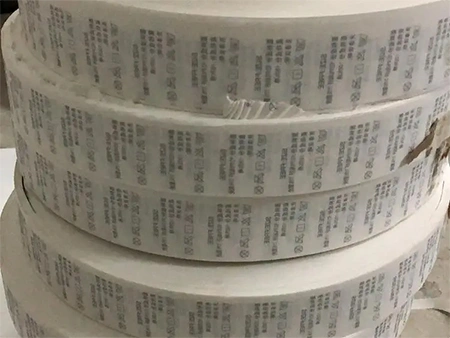

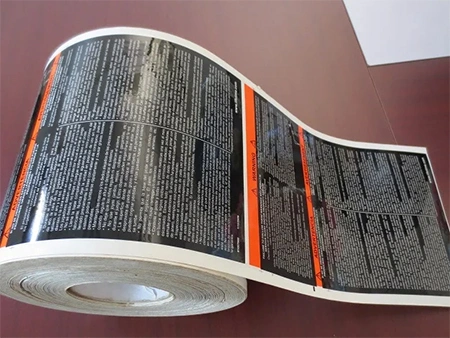

Samples
  • Samples
  • Samples
  • Samples
  • Samples
Technical Specifications
Hot Air Dryer (Series 30 m)
Model LTB-350 (internal path 30 m) LTB-460 (internal path 30 m)
Material Baosteel / Ansteel ST12 Baosteel / Ansteel ST12
Power kW 11 11
Temperature Range °C Ambient to 100 (higher-temperature configurations available) Ambient to 100 (higher-temperature configurations available)
Insulation Thickness mm 50 50
Temperature Controllers pcs 2 2
Cooling Fans W 38 38
Max. Roll Diameter mm 500 500
Machine Dimensions (L×W×H) mm 1970×780×1810 1970×900×1810
Weight kg 400 500
Specifications and available functions may vary depending on the final machine configuration.
Hot Air Dryer (Series 60 m)
Model LTB-600(internal path 60 m)
Material Baosteel / Ansteel ST12
Power kw 22
Temperature Range °C Ambient to 140 (higher-temperature configurations available)
Insulation Thickness mm 100
Temperature Controllers pcs 4
Cooling Fans pcs 6
Max. Roll Diameter mm 600
Web Guide Stroke mm 40(+20)
Machine Dimensions (L×W×H) mm 2830×1060×2150
Net Weight kg 900
Specifications and available functions may vary depending on the final machine configuration.
Hot Air Dryer (Series 80 m)
Model LTB-800(internal path 80 m) LTB-1000(internal path 80 m)
Material Baosteel / Ansteel ST12 Baosteel / Ansteel ST12
Power kW 22 22
Temperature Range °C Ambient to 140 (higher-temperature configurations available) Ambient to 140 (higher-temperature configurations available)
Insulation Thickness mm 100 100
Temperature Controllers pcs 4 4
Cooling Fans pcs 8 8
Max. Roll Diameter mm 600 600
Machine Dimensions (L×W×H) mm 3000×1260×2260 3100×1500×2260
Net Weight kg 1000 1100
Specifications and available functions may vary depending on the final machine configuration.
Advantages
  • Low-temperature drying
    Materials that are sensitive to heat can be dried at lower temperatures to reduce unwanted shrinkage or deformation. This is especially useful in multi-color printing as material stability has a direct effect on registration.
  • Even & controlled heating
    Separate digital temperature controllers manage individual heating zones. Four-sided heating and circulating airflow spread the heat evenly through the tunnel for consistent drying from one section to the next.
  • More processes can be added
    Optional modules include automatic lamination for double-sided adhesive or protective film, an independently operated UV curing unit for UV inks, and web guiding to keep the roll properly aligned during rewinding.
  • Built for continuous production
    Material feeding assistance, anti-reverse pulling, and constant-speed control keep the web moving steadily through feeding, drying, and rewinding. This also keeps the drying time consistent as production continues.
  • Easier inspection on the line
    A built-in inspection light gives operators a clear view of the printed material for routine quality checks during production.

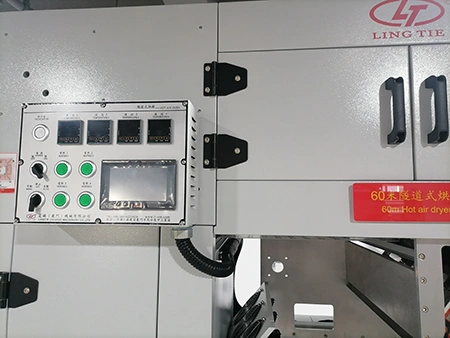

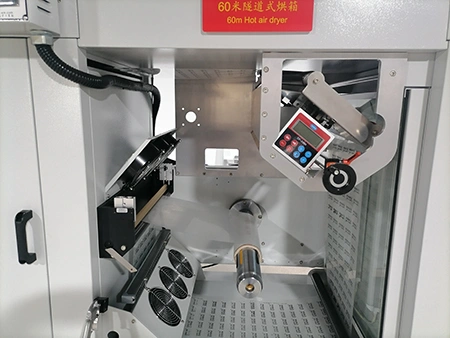

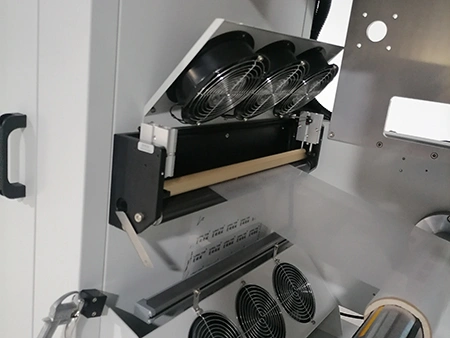

Components
  • Components
  • Components
  • Components
  • Components
Optional functions

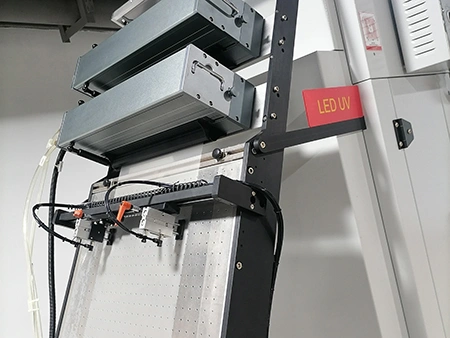

  • LED UV
    LED UV
  • Mercury UV
    Mercury UV
  • Single-sided cleaning
    Single-sided cleaning
  • Low-tension rewinding
    Low-tension rewinding
  • Anti-scratch handling
    Anti-scratch handling
  • Web-guiding
    Web-guiding
  • Double-sided cleaning
    Double-sided cleaning
  • Constant-speed control
    Constant-speed control
