Cantilevered Winder

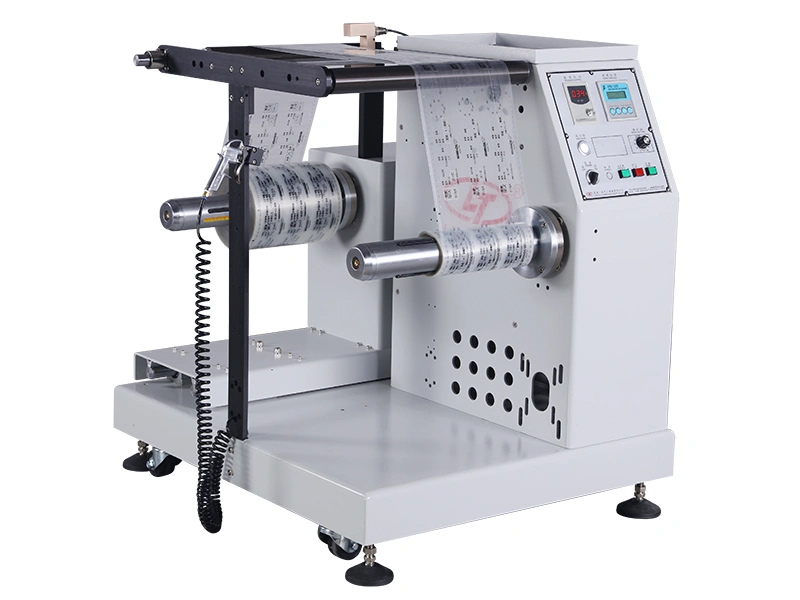

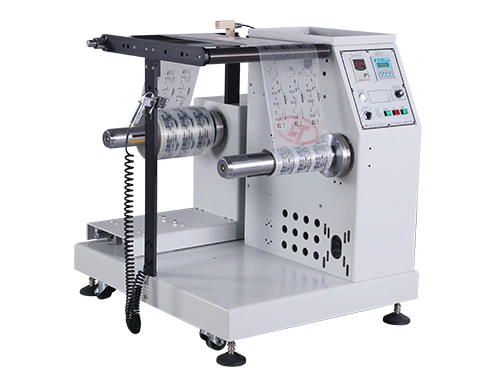

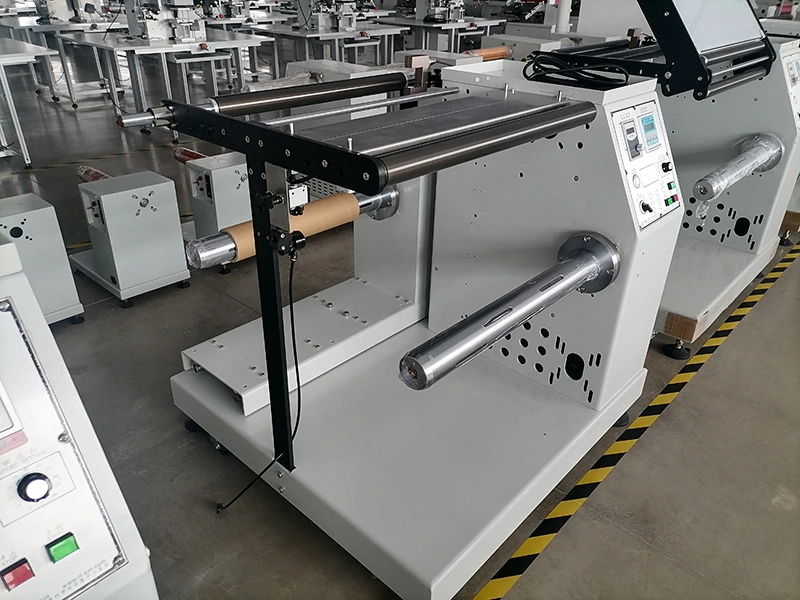

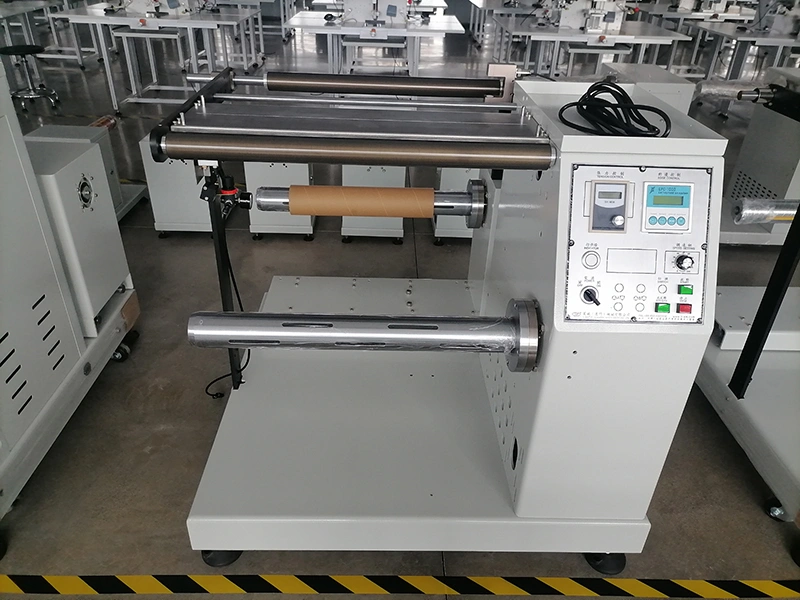

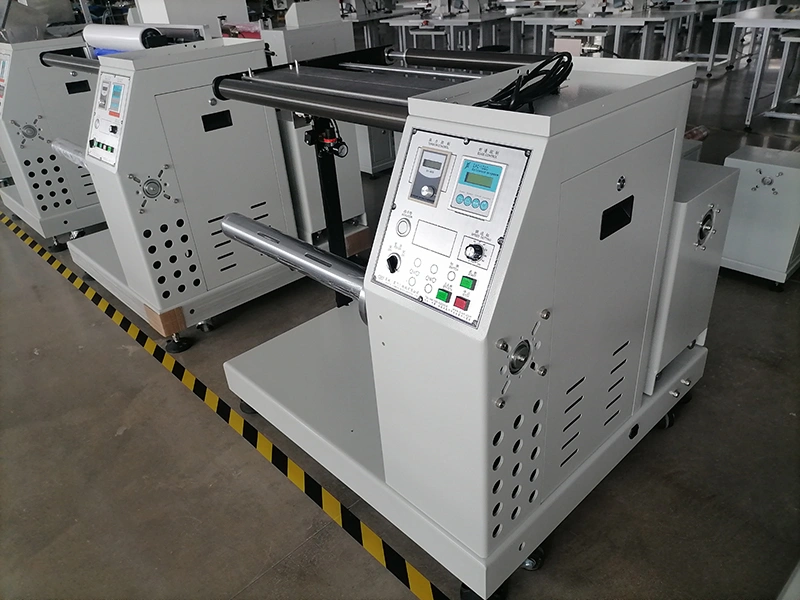

Cantilevered winders rewind films, labels, paper, and other flexible web materials with controlled tension and automatic web guiding. The cantilevered shaft is supported from one side, which makes roll loading and unloading easier. During rewinding, the guiding system corrects web misalignment and keeps the roll neat and wrinkle-free. These narrow web winders can also support web splicing and stable operation at higher speeds.

Request a Quote
Samples
  • Samples
  • Samples
  • Samples
Technical Specifications
Model LTD-400B LTD-600B LTD-700B LTD-900B (5th Gen.) LTD-1000B (5th Gen.)
Max. Web Width mm 400 600 700 900 1000
Max. Load kg 70(customizable) 70(customizable) 70(customizable) 200(customizable) 200(customizable)
Max. Roll Diameter mm 650 650 650 910 910
Power Supply V / kW 220 / 0.75 220 / 1.7 220 / 1.7 220 / 1.7 220 / 1.7
Electromagnetic Tension N 0–25 0–25 0–25 100 100
Web Guide Stroke mm 140(±70) 140(±70) 140(±70) 140(±70) 140(±70)
Net Weight kg 290 330 360 600 630
Machine Dimensions (L×W×H) mm 1000×950×1050 (+100adjustable) 1000×1150×1050 (+100adjustable) 1000×1250×1050 (+100adjustable) 1310×1664×1140 (+100adjustable) 1310×1764×1140 (+100adjustable)
Other sizes and models are available upon request. Weight varies depending on the final machine configuration.
Functions
  • Automatic web guiding checks the position of the web during rewinding and corrects any misalignment as it occurs, keeping the material straight and reducing wrinkles in the finished roll.
  • An optional slitting system can divide a wide web into several narrower rolls at preset widths. Paper, plastic film, metal foil, adhesive tape, fabric, and other roll materials can be slit continuously in the longitudinal direction and rewound in the same process.
  • Pneumatic expanding shafts on both the unwind and rewind sides make roll loading and removal quick and straightforward. Once the rewinding cycle is complete, the winder stops automatically and gives an alarm.
  • The winder has an electrostatic powder-coated finish for good durability and resistance during everyday industrial use. Reserved connection points also make it possible to add other functions when required for a particular production process.
Components
  • Tension control system

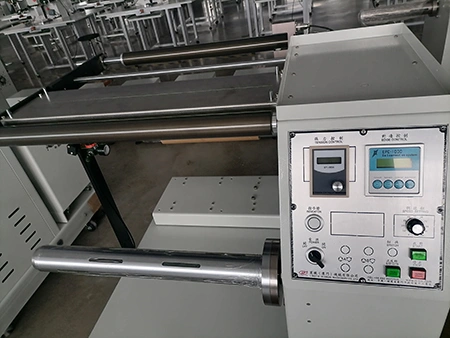

    Tension control system

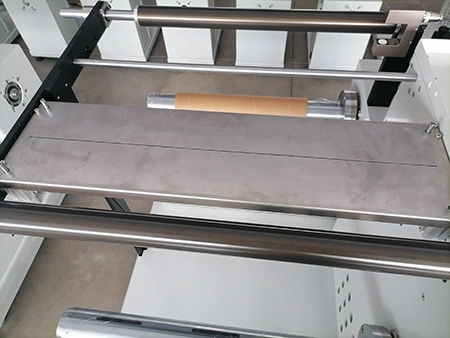

  • Splicing table
    Splicing table
  • Web-guide sensor

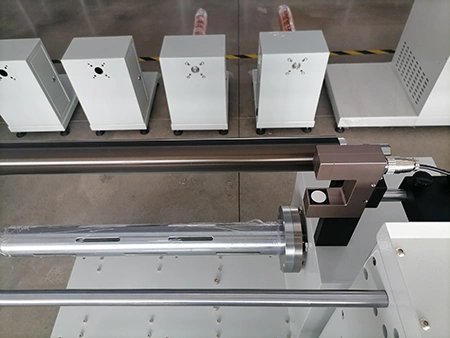

    Web-guide sensor
Optional functions
  • Web cleaning
    Web cleaning
  • Corona treater for conductive materials
    Corona treater for conductive materials
  • Semi-automatic electromagnetic tension control
    Semi-automatic electromagnetic tension control
  • Laminating function
    Laminating function
  • Metering function
    Metering function
  • Counting function
    Counting function
  • Heating function
    Heating function
  • Splicing table
    Splicing table
  • Anti-static brushes
    Anti-static brushes
  • Inspection table
    Inspection table
  • Pneumatic pressing
    Pneumatic pressing
  • Film peeling
    Film peeling
  • Sloped inspection table
    Sloped inspection table
  • Rotary knife slitting
    Rotary knife slitting
  • Razor blade slitting
    Razor blade slitting
