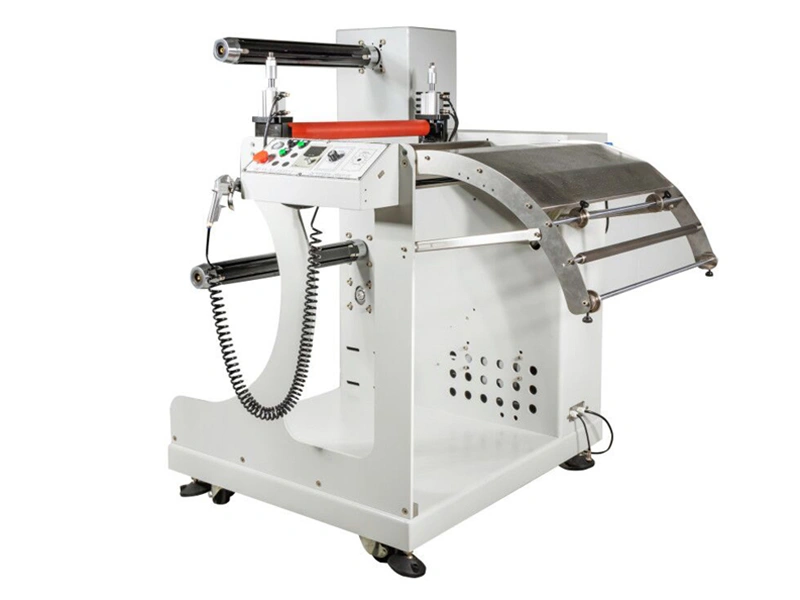

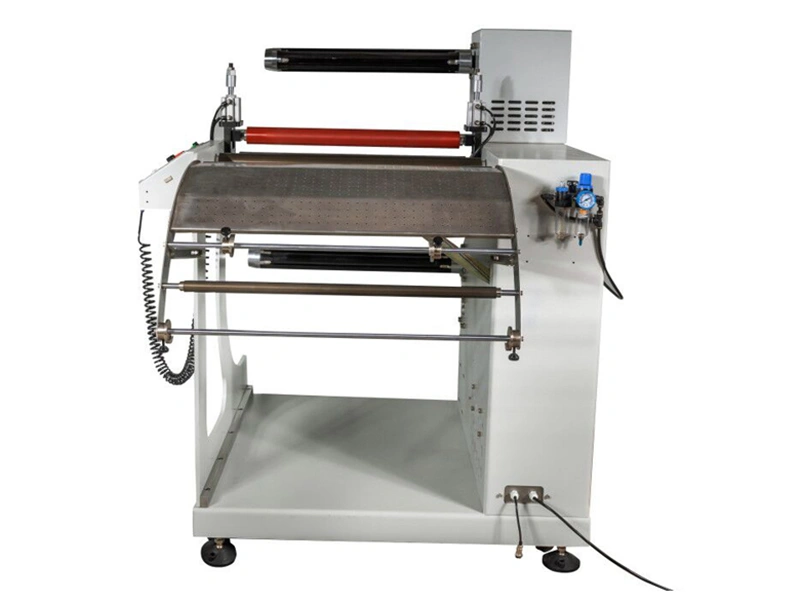

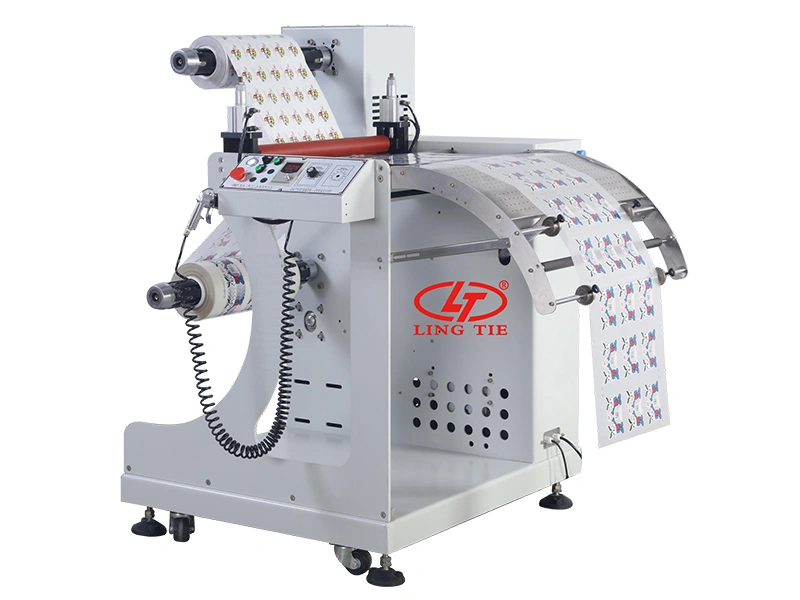

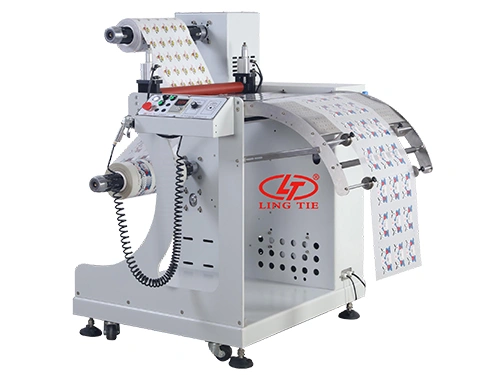

Rewind Stand

Rewind stand is built for automatic rewinding of printed labels, adhesive rolls, packaging films, and other roll materials. It collects finished materials into neat and uniform rolls after printing and provides a stable winding performance after printing for efficient roll material processing.

Request a Quote

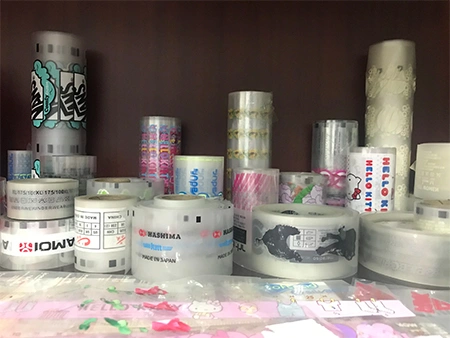

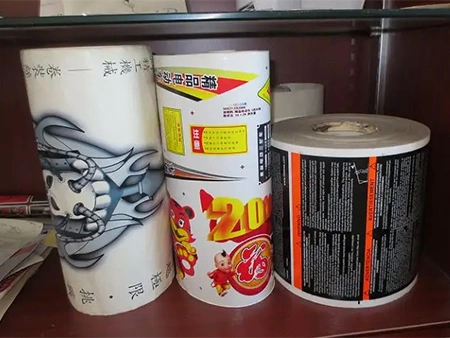

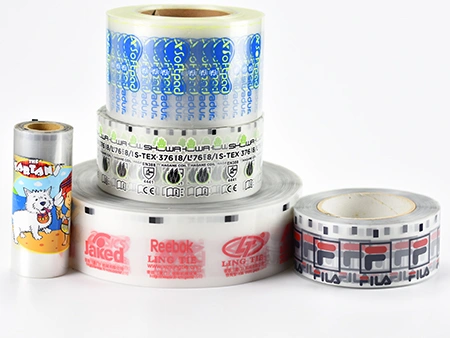

Applicable Materials
  • Applicable Materials
  • Applicable Materials
  • Applicable Materials
Technical Specifications
Model LTE-400C LTE-500C LTE-600C LTE-700C LTE-800C
Max. Web Width mm 400 500 600 700 800
Max. Roll Diameter mm 700 700 700 700 700
Max. Load kg 70 70 70 70 70
Power kW 1 1 1 1 1
Power Supply phase / V 1 / 220 1 / 220 1 / 220 1 / 220 1 / 220
Electromagnetic Tension N 1–25 1–25 1–25 1–25 1–25
Net Weight kg 320 340 360 380 400
Machine Dimensions (L×W×H) mm 1400×1000×1400 1400×1100×1400 1400×1200×1400 1400×1300×1400 1400×1400×1400
Specifications and available functions may vary depending on the final machine configuration.
Advantages
  • Rewind stands are equipped with a 3-inch pneumatic expanding shaft that holds the roll securely during operation and releases it easily when the finished roll is removed.
  • Optional automatic lamination can be added when the material needs to be laminated before rewinding.
  • UV curing can be installed above the rewind stand when the printed web needs curing before it is wound.
  • The infeed vacuum plate maintains the tension needed for smooth, even rewinding.
Components

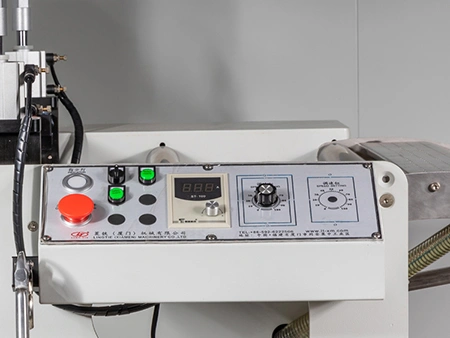

  • Control panel
    Control panel

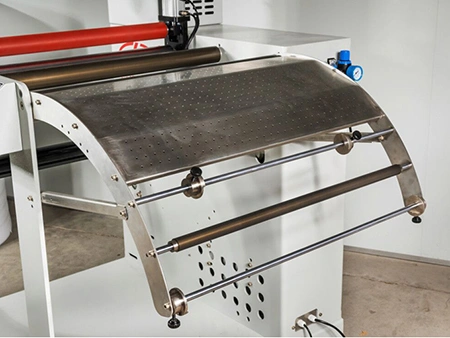

  • Vacuum table
    Vacuum table

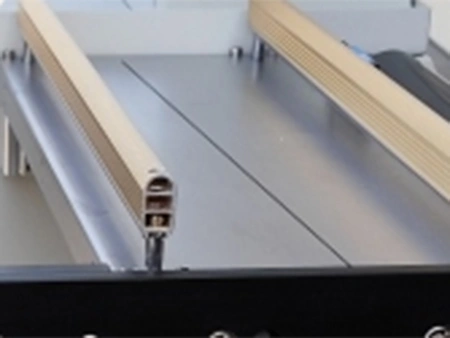

  • Splicing table
    Splicing table
Optional functions
  • Web cleaning
    Web cleaning
  • Film peeling
    Film peeling
  • Laminating function
    Laminating function
  • Anti-static brushes
    Anti-static brushes
  • Splicing table
    Splicing table
